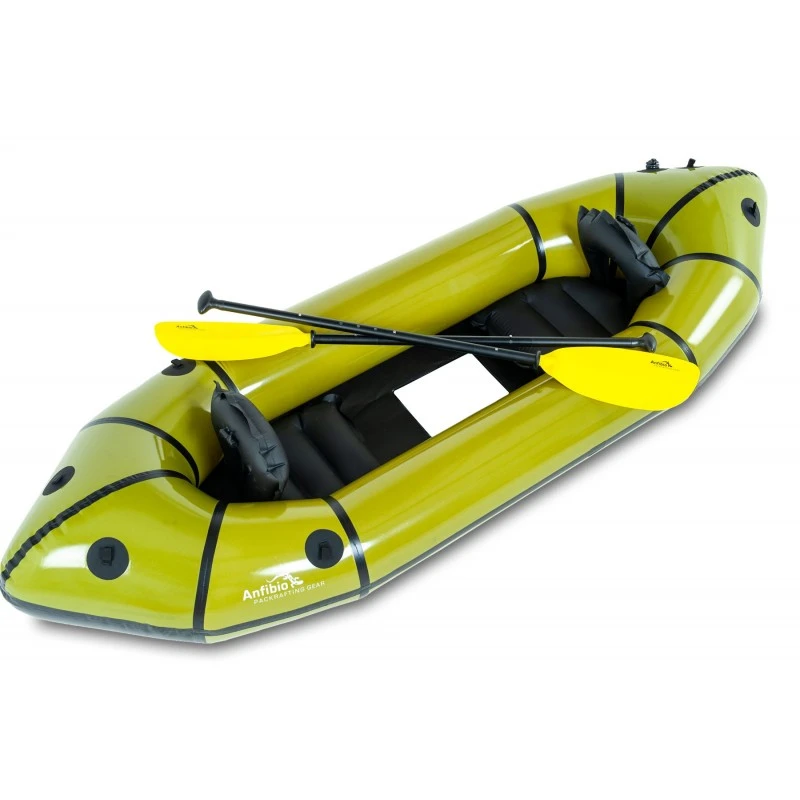

ANFIBIO SIGMA TXV

The boat comes with a infatable seat with integrated backrests. A second seat can be puchased optional. The front seat has a variable position (backward or forward). However, to save weight and space one can also use baggage for seating (like dry bags, sleeping mats). The seats can also be bought separately and there are other options too.

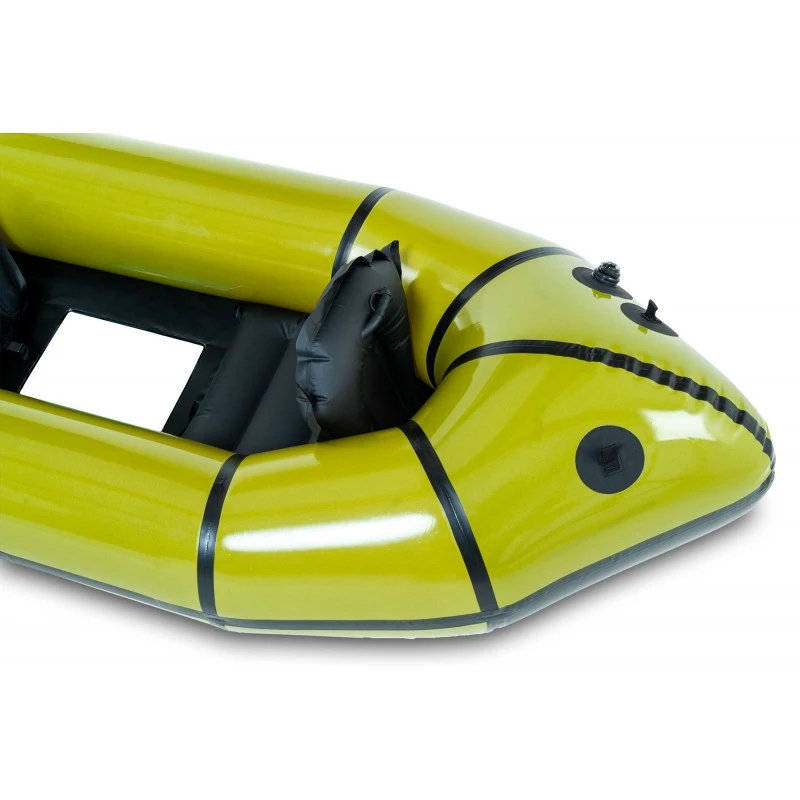

In front of the rear seat is the 30×30 cm viewing window, so that you can look into the water without any problems even while paddling. Even when going tandem, the view is not covered by the second seat.



There are 6 tie-downs (2 at the stern, 4 at the bow) for example to secure luggage, to provide grab loops or to fasten a DeckPack.

Material and workmanship

The Anfbio Sigma TXV is made of special fabric (210/420 urethane nylon), which has a high tear and abrasion resistance despite its low weight. The smooth and shiny surface of the tube’s coating is particularly scratch resistant.

All the boat’s seams are fully welded and the tube seams are additionally sewn, making it a completely glue free construction. This saves weight, costs and the environment! We grant an extended 3-year warranty on materials and workmanship.

In its special edition, a viewing window made of transparent TPU film is additionally welded into the floor.  You should not directly step on it when getting on board, because the TPU film has some stretch. Otherwise the abrasion resistance of the TPU film is identical to the boat’s coating.

A special feature are the reinforced lower front and rear tube segments with panels of floor fabric to ensure higher robustness when having ground contact. However, as an ultralight boat, it should still be treated with the necessary care, especially when fully loaded.



The boat is likewise paddled kayak or canoe style and is infated with a big nylon infation bag, which attaches to the boat via a screw-in valve.



No inflatable is indestructible of course, but in the (unlikely) event of sustaining damage, repairs can be done within a few minutes in the field with LifePatch (in case of the viewing window better transparent Patch`n Go), which bonds well to the urethane surface. Small pinholes can be sealed with Stormsure, a liquid urethane sealant.

Carbon footprint
All Anfibio Packrafts produced since 2018 have been carbon offset through selected climate protection projects. Learn more.

Social standards
Anfibio pays attention to safe and fair working conditions during the production. How we check social standards during manufacturing, we describe here.

Ships with:

• Boat
• Pack strap
• Inflation bag
• Baffled comfort seat with integrated backrest (optional)
• Repair fabric (spare tube and floor material)
• Manual

Material

• tubes: 210den Urethan-Nylon (single-sided, multiple coating and surface finish)
• floor:420den Urethan-Nylon (double-sided, multiple coating and surface finish)
• window: transparent thermoplastic polyurethane
• seat: Nylon 210D/118T laminated

Construction

Parallel hull, high volume bow and stern, flat floor, 6 grap loops (4 bow, 2 stern), main one way valve, seat strap, reinforced bow and stern segment with panel from floor fabric, 30 x 30 cm large viewing window

Speed: 5 km/h

Buoyancy: 190 kg

Workmanship

Complete glue-free construction, sewn and welded seams

Weight*

Boat: 2070 g
Seat: each 250 g (removable)

Pack strap: 25 g
Inflation bag: 100 g
Repair fabric: 20 g

Dimensions*

Inner

•  Length: 160 cm
•  Width: 39 cm

Outer

• Length: 260 cm
• Width: 93 cm

• Waterline: 250 cm
• Tube diameter: 27 cm

Packing size: about 30 x 20 cm

Available colors: Fresh Green

*verified
